XDIWIN-F1

Product Overview

The XDIWIN-F1 is an Exd detector with window feature display, housed within our high-grade aluminium alloy casing. Approvals include ATEX and IECEX.

Features & Benefits

  • Explosion proof
  • Rugged and reliable
  • 3 alarm points
  • Addressable or Stand Alone

Additional Information

PDF Downloads

General Enquiries Tel. +44 (0) 113 2860166 Email: admin@gds-technologies.co.uk Sales Enquiries: Tel. +44 (0) 113 2878187 Email: sales@gds-technologies.co.uk Technical Engineering Advice Tel. +44 (0) 113 2878184 Email: admin@gds-technologies.co.uk

XDIWIN-F1

The XDIWIN-F1 is an Exd detector with window feature display, housed within our high-grade aluminium alloy casing. The detector can utilise a wide range of sensor cell types offering an unmatched number of gases that may be monitored. Standard 4~20mA signalling with CANbus address enables the sensors to be networked via the GDS Combi control system or customer preferred monitoring systems. Approvals include ATEX and IECEX.


Certification
Explosion proof ATEX IECEx
112G Exd IIC T6-T3 Gb
112D Extb IIIC T85˚C Db
Power Supply – 15 to 30vDC 24v nominal
Outputs – 3 wire 4~20mA / 4 wire CANbus
Relays – Low alarm S.P.C.O / High alarm S.P.C.O / Fault alarm S.P.C.O
Rating – 0.5A @30vDC
Inhibit option during servicing
Logging – Intervals – one minute to one hour / Storage – 2,880 readings
Display – 2 line alpha numeric back lit status display: gas type, concentrating units, alarm levels, alarm status, low/high/over range), sensor ID, inhibit
Indicators – Alarm – Red LED / Fault – Amber LED (flashing when in inhibit)
Housing Material – Copper free aluminium alloy, optional stainless steel
Finish – Chemical resistant epoxy paint / Optional – Marine grade finish / Sensor material – Stainless Steel 316516
Ingress Protection – IP63 + weather shield IP65
Cable Entry – 2 x M20 – 1.5 pitch – alternatives 25mm – 3/4 NPT
Weight – 1.6kg
Temperature -15˚C to +55˚C
See certification for Exd use
Humidity – 0 to 99% RH non-condensing

Top Accessories

F1 Universal Fitting

Downloadable Document

Download

F1 Collector Cone + Universal Fitting

Downloadable Document

Download

F1 Flow Block unit

Downloadable Document

Download

F1 SS Flow Block

Downloadable Document

Download

F1 SS Watershield

Downloadable Document

Download

F1 Sensor Tag

Downloadable Document

Download

F1 Thermal Jacket

Downloadable Document

Download

F1 Mounting Boss 3

Downloadable Document

Download

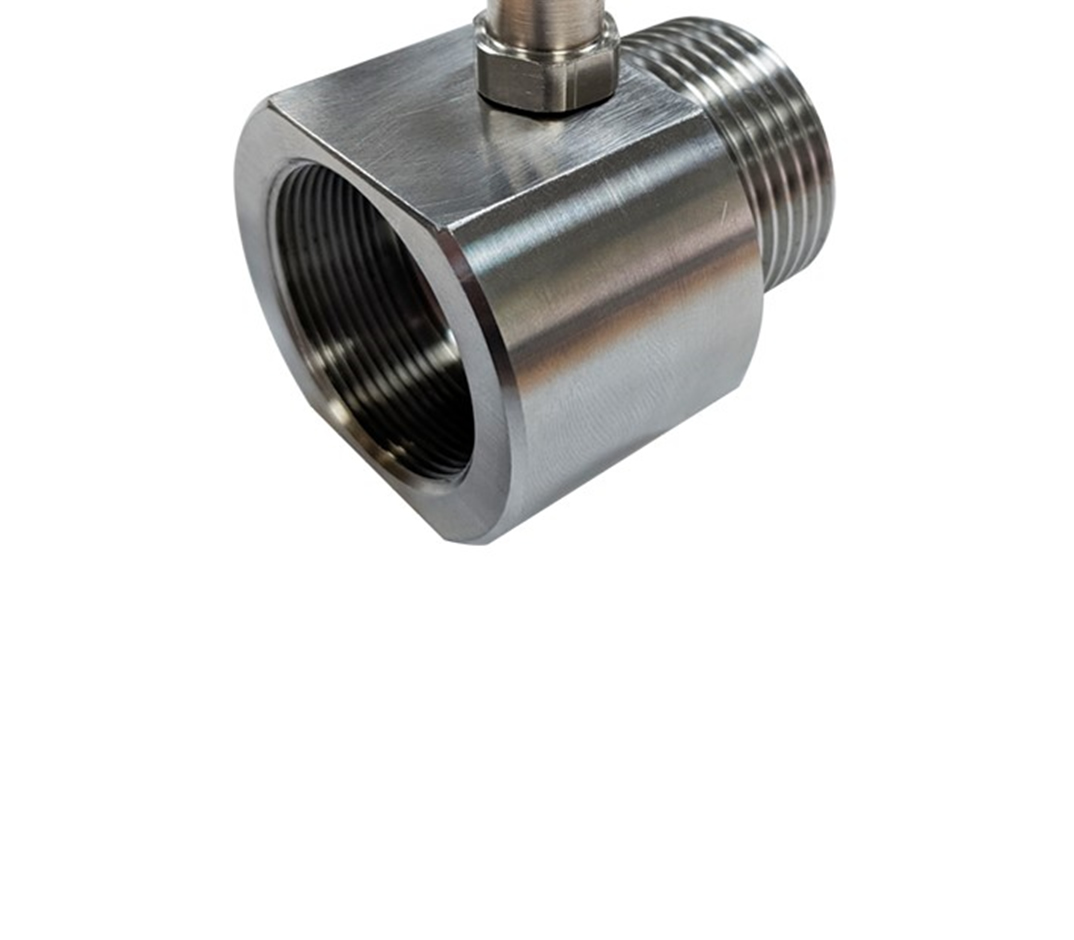

F1 Mounting Boss Screw In 3
